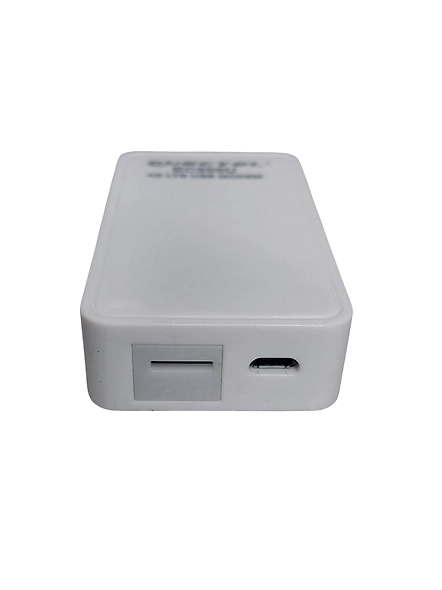

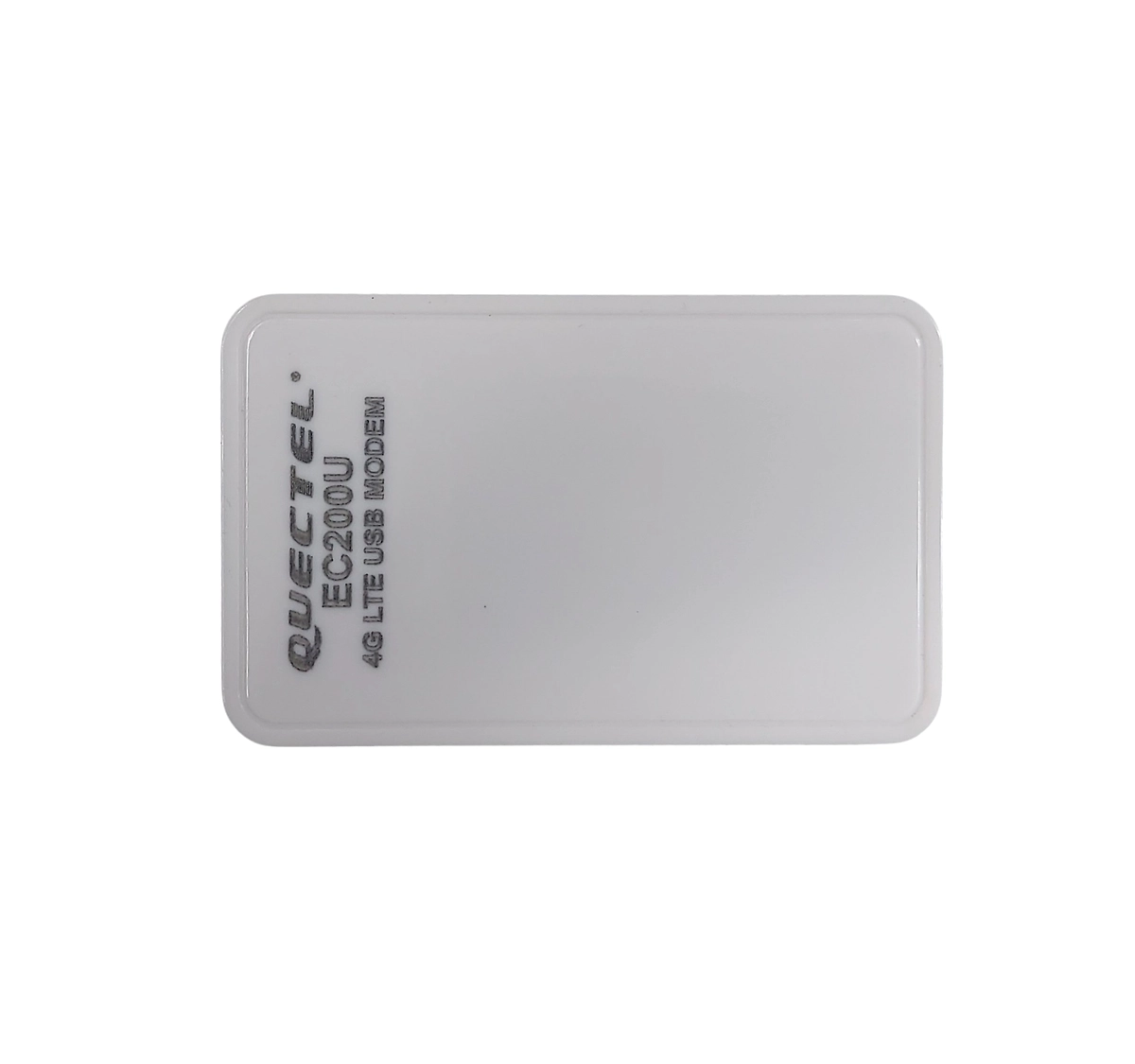

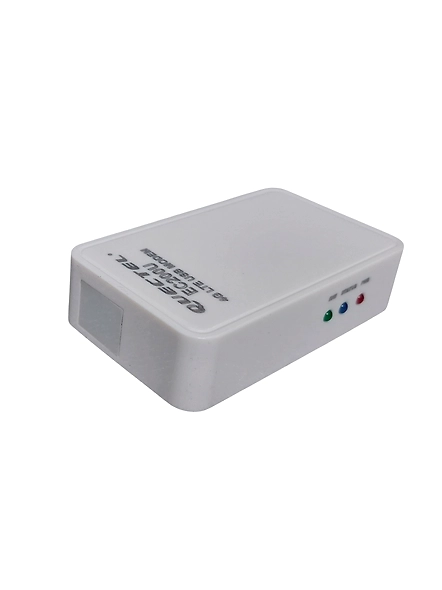

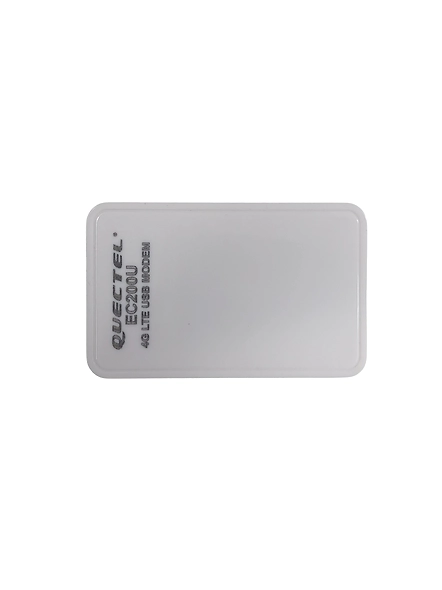

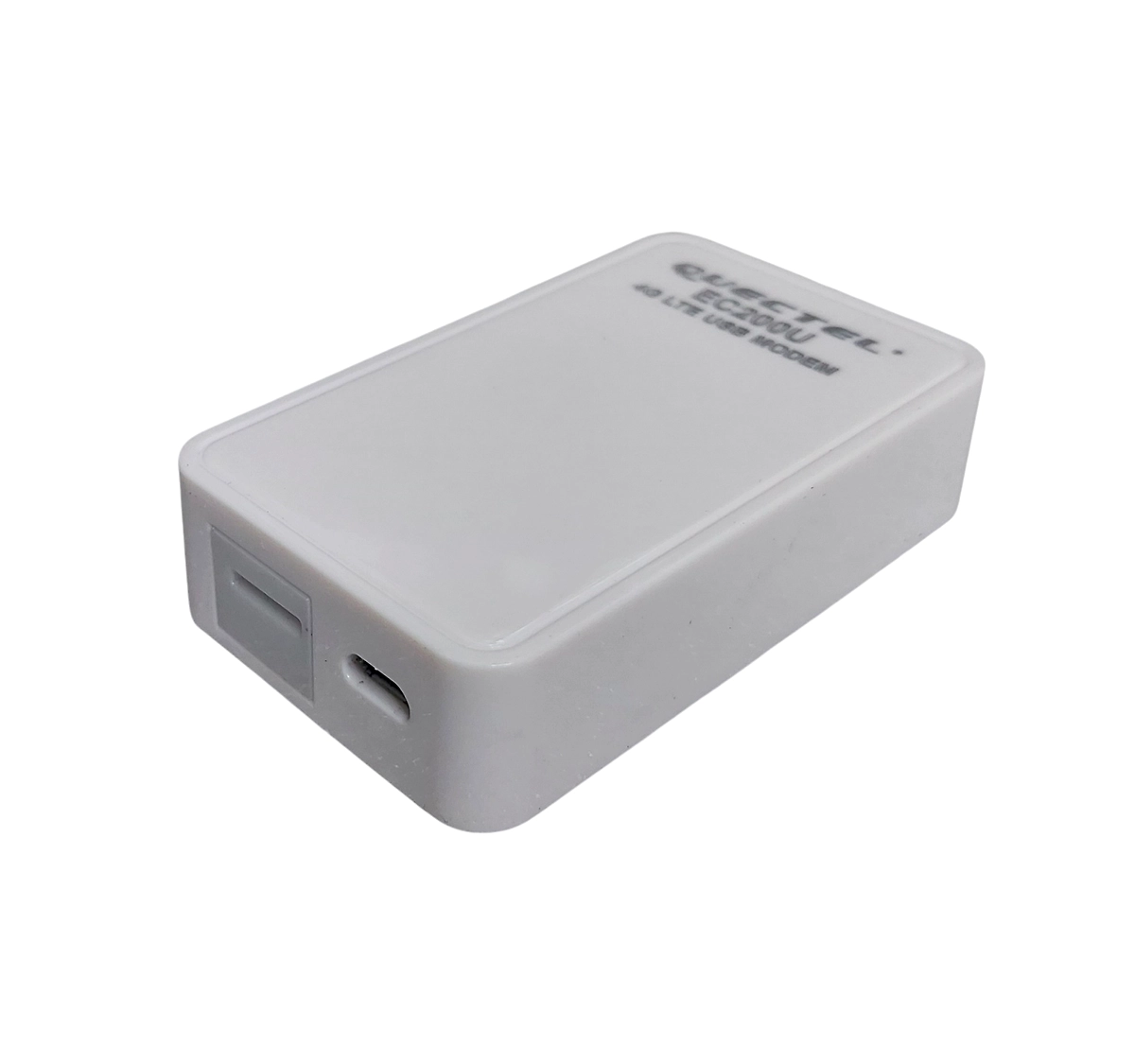

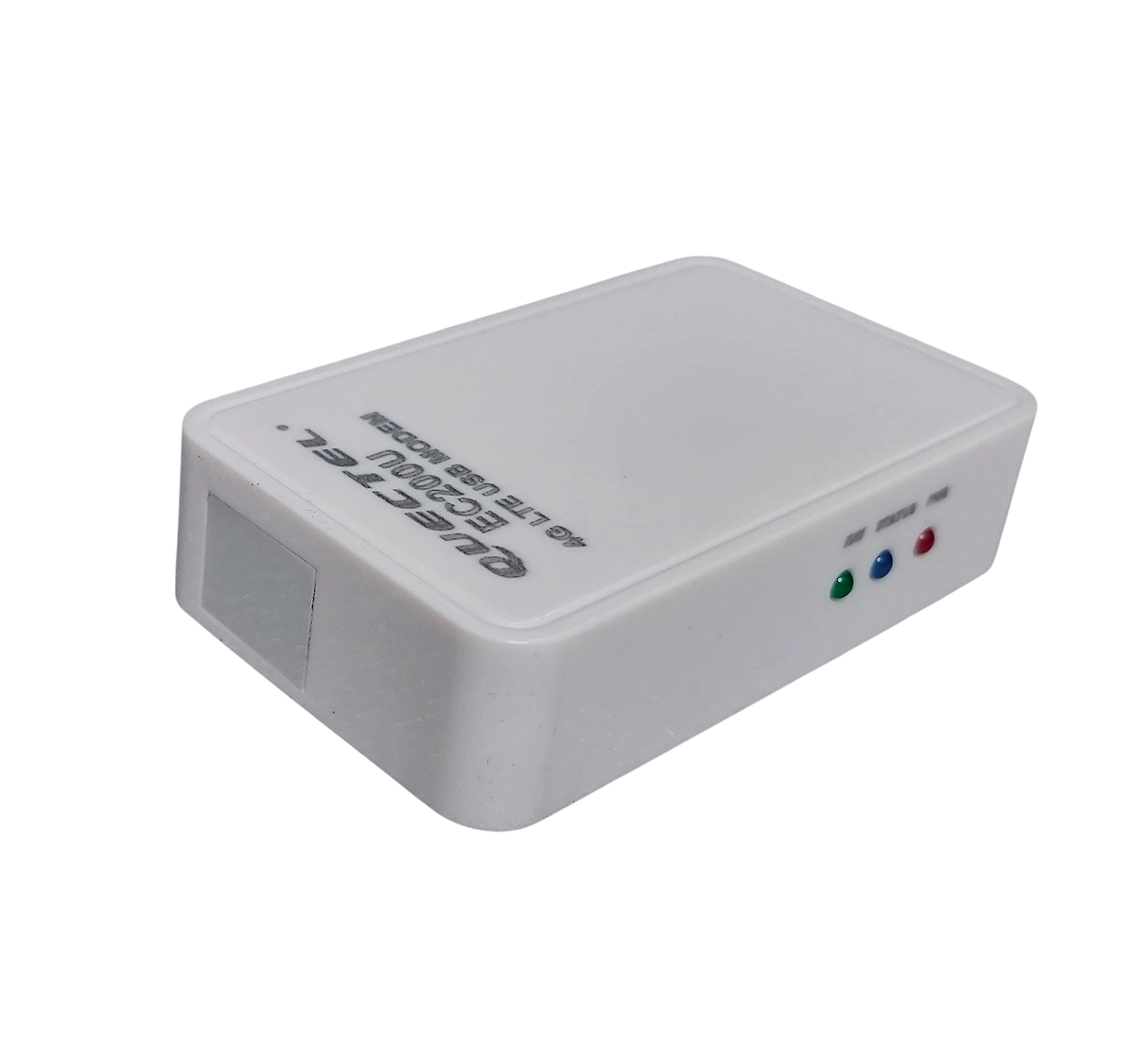

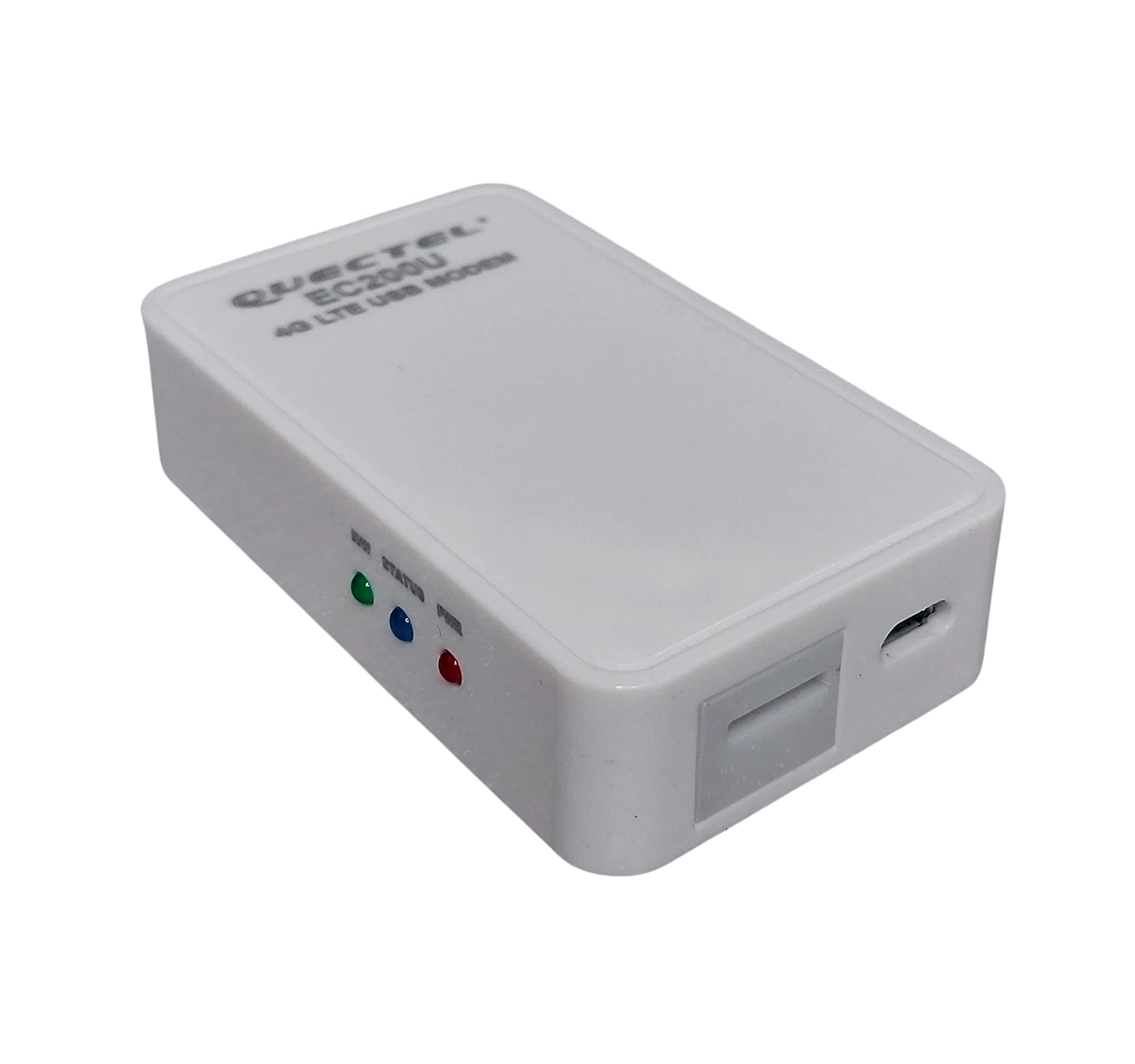

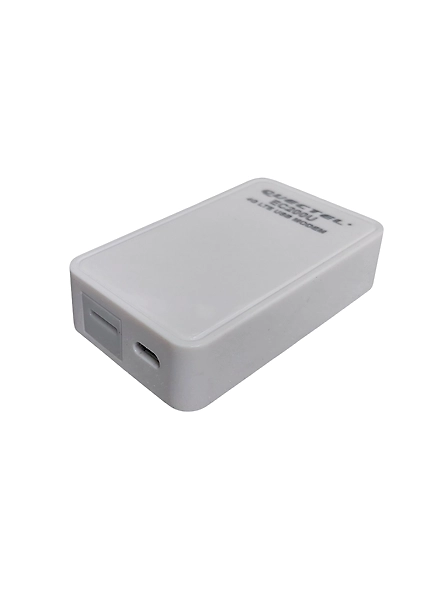

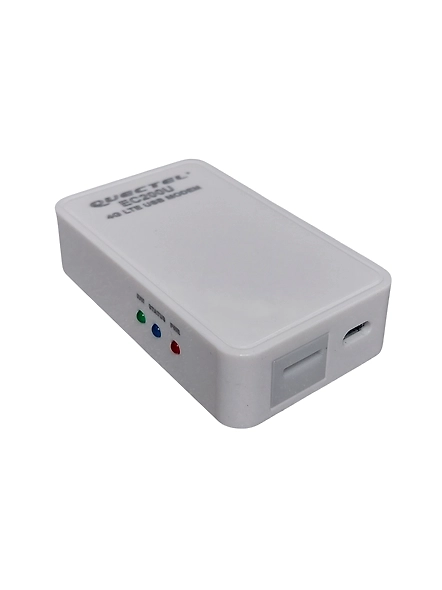

Quectel EC200U 4G LTE USB Modem for Raspberry Pi and Industrial IOT Applications
4500.00
/ cm
2200.00
/ cm
Inclusive of all taxes
You Save: 2300. Discount: 51.11%
-
Product is not available
Country Of Origin : India
Quectel EC200U 4G LTE USB Modem is an industrial-grade communication module designed for Raspberry Pi and IoT applications. Supporting LTE Cat 1 (FDD/TDD), GSM/GPRS, and a wide range of protocols, it enables high-speed data and SMS communication across various operating systems. With a self-powered USB 2.0 interface, built-in antenna, and compact form factor, it is ideal for embedded and space-constrained environments requiring reliable mobile connectivity.
Features:
- Supports LTE-FDD, LTE-TDD, GSM/GPRS for data and SMS communication
- USB-powered with Micro USB interface for plug-and-play operation
- High-speed USB 2.0 interface up to 480 Mbps
- Inbuilt GL Maxgain 4G antenna for enhanced signal strength
- Compatible with Windows, Linux, Android, and Raspberry Pi
Attributes:
- Network Bands: LTE Cat 1 (FDD/TDD)
- Operating Voltage: 5V USB
- Protocols Supported: MQTT, HTTP, HTTPS, FTP, TCP, UDP, SSL
- Form Factor: Compact design with onboard SIM slot

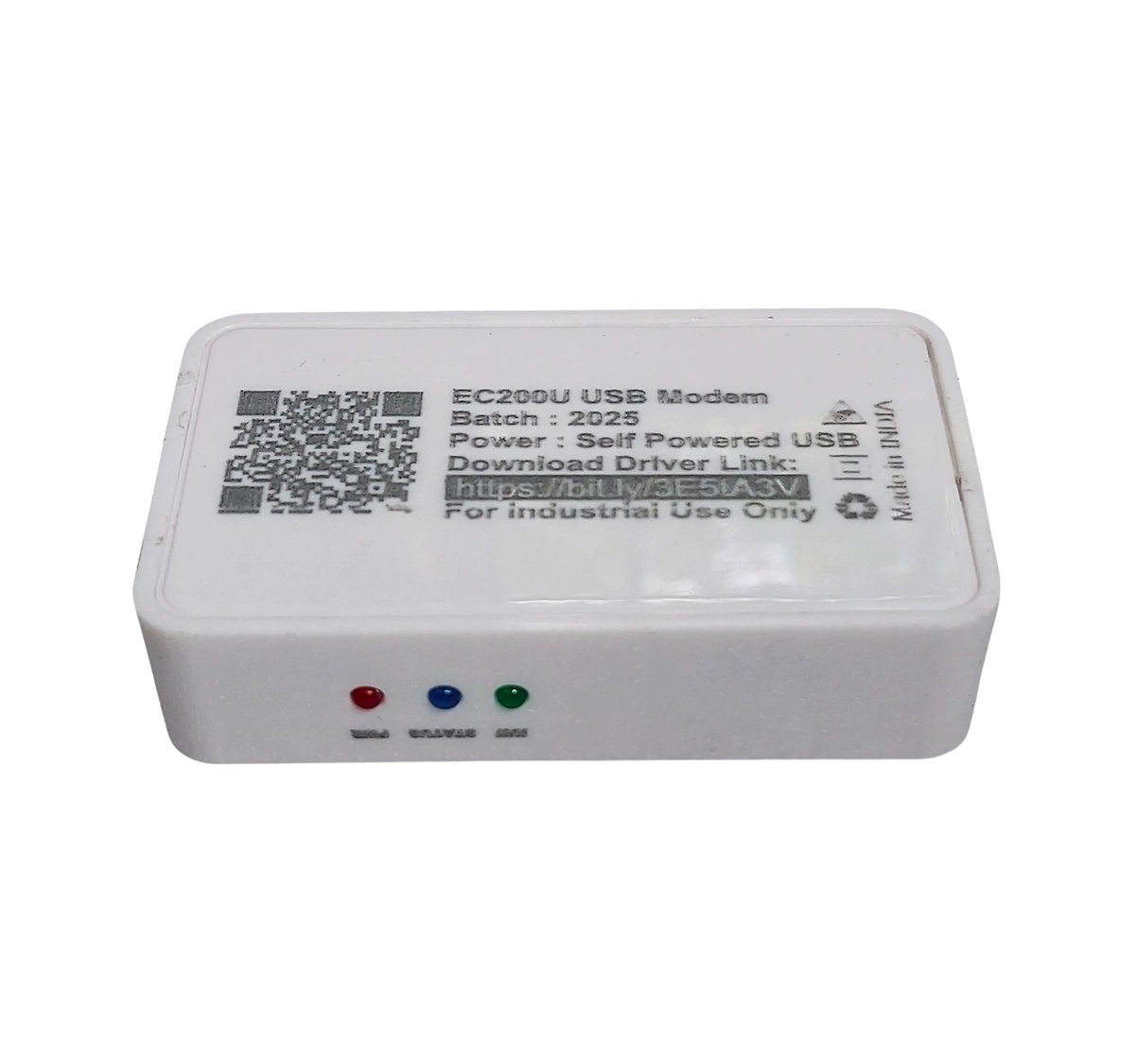

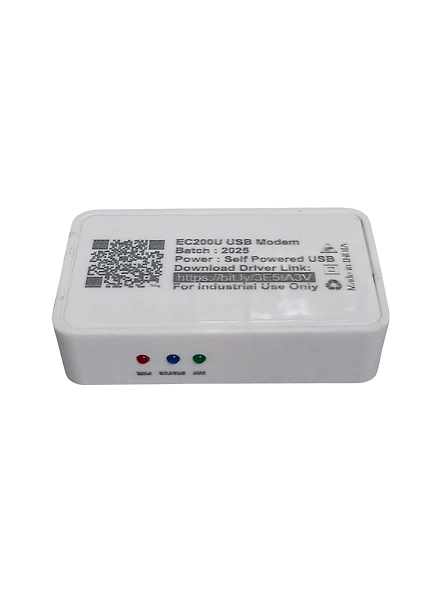

- Indicators: 3 LEDs for Power, Network, and Status
-
Additional Information
Overview
The Quectel EC200U 4G LTE USB Modem is engineered for robust, high-speed wireless connectivity in industrial and embedded systems. Designed for integration with Raspberry Pi, Windows, Linux, and Android-based devices, this modem provides stable mobile network access for both data and SMS applications.
High-Speed Cellular Connectivity
Built to support LTE Cat 1 (FDD and TDD), the modem delivers download speeds up to 10 Mbps and upload speeds up to 5 Mbps. It also includes support for GSM/GPRS multi-slot class 12, enabling fallback in areas with limited LTE coverage.
Industrial Design & Hardware Integration
The modem features a compact housing and built-in GL Maxgain 4G sticker antenna, making it suitable for space-restricted IoT deployments. A Micro USB interface powers the device while offering seamless serial communication via virtual COM port.
Extensive OS Compatibility
Drivers are available for Windows XP through Windows 10, Linux (2.6 to 4.1), Android 4.x to 6.0, and Raspberry Pi, ensuring integration with a wide array of platforms. The device also supports industry-standard AT commands for simplified control.
Advanced Functionality
Additional features include MIMO support, built-in support for protocols such as HTTP, HTTPS, FTP, MQTT, and SSL, and compatibility with both text and PDU SMS modes. Optional GNSS functionality can be requested for positioning needs.
